Your comprehensive guide to selecting the best oscilloscopes for precise measurements.
Oscilloscopes Explained: Your Guide to Signal Analysis 2025 provides an in-depth look into the essential aspects of this critical testing equipment. Understanding their functions and capabilities can be the difference between a successful project and costly errors. As technology evolves, so do oscilloscopes, with innovations that allow for more precise measurements and user-friendly designs. This makes it crucial for consumers to stay informed about the best options available. From features like digital storage to advanced triggering, selecting the right oscilloscope can enhance your ability to diagnose issues and optimise performance. Whether you’re testing a simple circuit or analysing complex signals, having the right tool is fundamental. Our guide will help you navigate through the myriad of choices, ensuring you find the oscilloscope that best suits your application needs.
I've examined countless options on Amazon to bring you this carefully selected lineup of exceptional products.
The RIGOL DS1202Z-E stands out in the oscilloscope market due to its impressive specifications and user-friendly features. With a bandwidth of 200MHz and a sampling rate of up to 1G Sa/s, it is designed to handle complex signals effortlessly. The 24Mpts memory depth allows for comprehensive waveform capture, making it ideal for both detailed analysis and long-term signal monitoring. Moreover, the device includes advanced bus triggering and decoding functionalities that support various communication protocols like RS232/UART, I2C, and SPI, making it suitable for a range of testing scenarios. In addition to its technical capabilities, the oscilloscope features a digital fluorescent display that mimics the visual effects of traditional oscilloscopes. This feature allows users to observe subtle waveform changes with ease, enhancing the overall user experience. The inclusion of a waveform recording function further allows for playback and analysis, making troubleshooting more efficient. Overall, the RIGOL DS1202Z-E is a powerful tool for anyone engaged in electronic design, repair, or education, combining high performance with practical functionality.

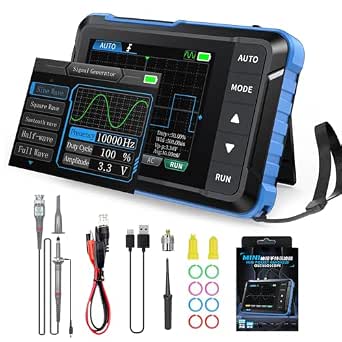

The WapoRich DSO153 is a remarkable addition to the handheld oscilloscope market, particularly for those seeking portability without sacrificing functionality. With an upgraded bandwidth of 1MHz and a sampling rate of 5MSa/s, it is well-suited for basic electronic testing needs, including signal generation. The oscilloscope features a compact design, measuring only 99x68 mm and weighing just 100g, making it incredibly easy to carry around, whether in a pocket or on a workbench. One of the key highlights of the DSO153 is its ability to generate 14 different waveform outputs, such as sine, square, and sawtooth waves. This variety enables users to perform extensive signal testing and analysis. The device is equipped with a user-friendly interface that includes an efficient one-button auto function, allowing users to quickly set up measurements without complicated adjustments. Additionally, the built-in rechargeable battery provides up to 4 hours of continuous use, making it ideal for fieldwork or educational settings. Overall, the WapoRich DSO153 is an accessible and practical tool for anyone needing a portable oscilloscope.
The Kethvoz Mini Oscilloscope KE-500K is specifically designed for users who require a compact and portable solution for voltage measurement and signal analysis. With a bandwidth of 500kHz and a sampling rate of 2.5 MS/s, this oscilloscope can effectively measure various signals, making it suitable for both automotive diagnostics and educational purposes. The device supports voltage measurements up to ±400V and features a one-touch AUTO measurement function, simplifying the process for users. The display is a 2.8-inch high-definition LCD, which provides clear visuals of waveforms, enhancing usability in various environments. Weighing only 100g, it is lightweight, ensuring that users can easily carry it to different locations. Additionally, the KE-500K is powered by a 400mAh lithium battery, offering approximately 3 hours of continuous use. This combination of portability, ease of use, and decent performance makes the Kethvoz Mini Oscilloscope a valuable tool for anyone working in electronics or education.
The RIGOL MSO5074 is engineered for professionals who demand precision and versatility in their measurements. With a bandwidth of 70MHz and the ability to analyse four analog channels simultaneously, it caters to a wide range of applications, including mixed signal analysis. The inclusion of UltraVision II technology significantly boosts the clarity of the displayed waveforms, making it easier for users to interpret complex signals. Furthermore, the oscilloscope's robust feature set includes advanced triggering options, extensive memory depth, and the ability to capture transient signals effectively. This makes it a suitable choice for both research and more complex engineering tasks. While the MSO5074 may be on the higher end of the price spectrum, its reliability and performance justify the investment for serious users looking for a quality device to enhance their work.
The RIGOL DS1102Z-E serves as an effective tool for those entering the world of signal analysis. With a bandwidth of 100MHz and a sampling rate of up to 1G Sa/s, it provides sufficient capability for various applications, ranging from educational purposes to light industrial use. The 24Mpts memory depth allows users to capture and analyse waveforms with precision, making it a practical choice for both students and professionals alike. The oscilloscope is designed with usability in mind, featuring a straightforward interface that facilitates easy operation. Additionally, it comes with a generous 3-year warranty, offering reassurance to users regarding the product's reliability. While it may not cater to high-end applications, the RIGOL DS1102Z-E offers substantial value for those requiring a quality oscilloscope without breaking the bank. Overall, it is a solid option for anyone looking to invest in their first digital oscilloscope.
The BSIDE OT3 Handheld Digital Oscilloscope is designed specifically for users seeking a portable and budget-friendly solution for basic signal analysis. With a bandwidth of 10MHz and a sampling rate of 48MSa/s, it adequately addresses the needs of beginners and hobbyists in electronics. The compact design and lightweight structure allow users to carry it easily, making it perfect for on-the-go measurements or fieldwork. The device features a rechargeable battery, ensuring that users can operate it for extended periods without worrying about power sources. Its user-friendly interface simplifies the measurement process, allowing users to focus on their tasks without dealing with complicated settings. While it may not compete with higher-end models in terms of bandwidth and sampling rates, the BSIDE OT3 provides an affordable entry point for those starting in the field of electronics. Overall, it is a practical choice for anyone looking to gain experience in signal analysis without a significant investment.
When selecting an oscilloscope, consider the specifications that match your testing requirements. Look for bandwidth, sampling rate, and user interface features that suit your specific applications. Remember, investing in a quality oscilloscope can save you time and frustration in the long run. As you embark on your search, keep in mind the importance of understanding your unique needs and how different models can fulfil them effectively. Your next great project starts with the right tools, so take the plunge and make an informed choice today!
Discover your perfect oscilloscope now!
